Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: XX
  • Model Number: XXT-001
  • Power: Electronic
  • Usage: Auto Testing Machine
  • Item: best seller high quality portable digital ultrasonic thickness gauge
  • Warranty: 3 years

Packaging & Delivery

Packaging Details Standard Carton Box
--------high quality portable digital ultrasonic thickness gauge
Delivery Time Within 5 working days after receiving the payment

Overview

XX001 is a portable ultrasonic thickness gauge. Based on the same operating principles as SONAR, it is capable of measuring the thickness of various materials with accuracy as high as 0.001mm, or 0.001 inch. It is suitable for a variety of metallic and non-metallic materials, and can be used in the fields of metallurge, railway, shipping, aviation, oil and others.





Feature

1. High precision timing chip and V-Path calibration model used for precision measurement

2. Probe gain adjustable

3. Thickness, sound velocity and time information can be stored completely

4. Bluetooth & Mini-USB interface used for communication and portable printer

5. Support online measurement

6. Contrast adjustable and backlight selectable

7. Host Software upgradable



Parameters



Measuring range

0.75 - 400mm (steel, with different probe)

Displaying accuracy

0.001mm / 0.0001inch

Measuring error

<10mm :±0.03mm, ≥10mm :(±0.3% * H)mm

Measurement period

4 times per second

Measurement frequency

5MHz, 2MHz, 7.5MHz, 3MHz

Ultrasonic velocity

1 - 9999m/s

Display

FSTN digital LCD with backlight

Display contents

Thickness, Sound velocity, Time, Stability, Battery, Measuring Mode, etc

Gain adjutable

3 level

Storage

1000 measurements, including thickness, sound velocity, time, etc

Communication

Blue & Mini-USB interface, virtual serial port protocol, support online measurement, host software upgradable.

Pinter

Portable bluetooth thermal printer optional

Power Supply

3.7V Li-Ion chargeable battery

Power off

Timeout power off, and low battery power off

Temperature

Usage: -10 ~ 50 °C

Store: -30 ~ 60 °C

Shape size

132mm * 76mm * 28mm

Weight

260g

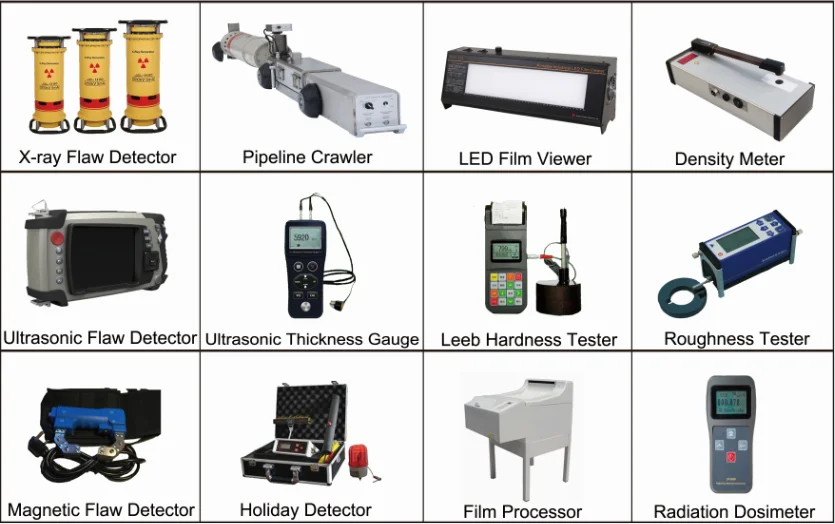

Products Display
